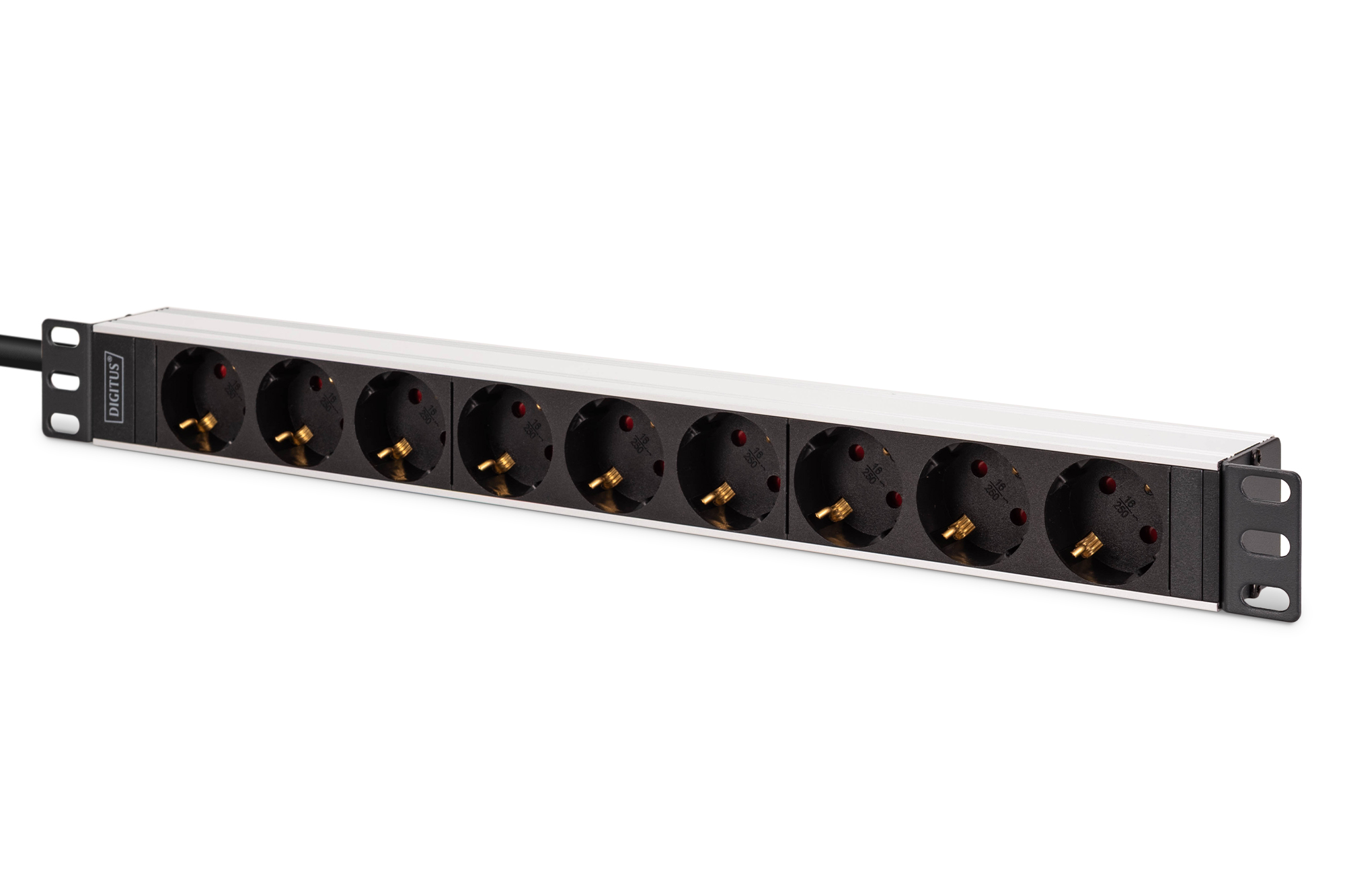

Multiple socket outlet with aluminum profile, 9-way socket outlet with earthing contact, 2 m supply cable, IEC C20 plug

DIGITUS Multiple socket outlet with aluminum profile, 9-way socket outlet with earthing contact, 2 m supply cable, IEC C20 plug

Número do produto DN-95440
4016032501671

1U Alu PDU, rackmount, 8x Safety outlet, 1x outlet 16A, 230VAC, 50/60Hz, IEC C20 plug

Safe and professional power supply in the 19" range

  • Perfect power distribution for your network and IT rack
  • Compact design, 19" 1U housing
  • Optimum power distribution for connection to a UPS (IEC-60320 C20 input connector)
  • Sockets are rotated by 45° for optimum space management and easy access

Distribution Partner Overview

More product information

Descrição

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The power strip can be mounted in the 19" area of the cabinet in a space-saving 1U.

Technical details

  • Horizontal 19" installation in the rack
  • Rotation of the cans: 45°
  • Housing: Aluminum profile
  • Plastic components made of ABS UL-94V-0
  • Input: Plug IEC60320 C20, 230 Vac / 16 A
  • Output: appliance sockets 9 x socket outlet with earthing contact DIN 49440, max. 16 A per output
  • Supply cable: cable cross-section: 1.5 mm² , length: 2 m
  • Dimensions: 482.6 mm (19") x 45 (1U) x 45 mm (HxWxD)

Package content

  • 1 socket strip, 2 mounting brackets; 1 safety instructions

Downloads and Certificates

Ficha de dados

Logística

  Número
(pcs) 		Peso
(kg) 		Profundidade
(cm) 		Largura
(cm) 		Altura
(cm) 		cm³
Embalagem em Cartão 10 9,40 19,50 52,00 29,50 29.913,00
Embalagem Interior 1 0,94 5,80 9,70 51,00 2.869,26
Embalagem Única 1 0,94 5,80 9,70 51,00 2.869,26
Número de taxa alfandegária: 8544429090

Safety notes

  • This product is not intended for unsupervised use by children or persons under their care!
  • Prevent higher humidity or temperatures than those specified in the data sheet - Avoid moisture, dust or vapors, solvents, flammable gases.
  • Multiple sockets are not designed for permanent use with heavy loads!
  • Multiple sockets must not be cascaded (avoid stringing together several multiple sockets).
  • The maximum connected load must not be exceeded.
  • Defective multiple sockets must be taken out of service immediately and disposed of in an environmentally friendly manner.
  • In the event of a fault, take the product out of operation and contact a qualified electrician.
  • Do not open the product.
  • Disconnect the product from the power supply before cleaning. Do not use any aggressive or abrasive cleaning agents for cleaning.
  • The ingress of liquids can lead to a short circuit.
