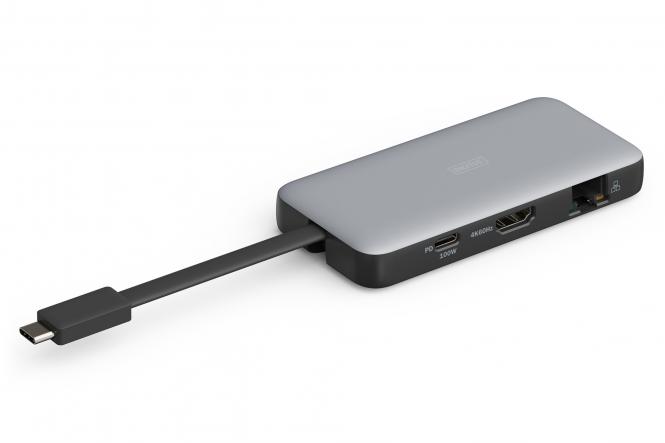

DIGITUS USB-C Travel Docking Station, 7-Port

Product number: DA-70916

EAN: 4016032497752

USB-C Travel Docking Station, 7-Port, 1x HDMI 2x USB 3.2 Gen 1, 1x RJ45, 1x SD,1x MicroSD, 1x PD

Expand your notebook with 7 additional ports - whether on the move or stationary

1x HDMI port (4K/60Hz) - Expand your workstation with an additional external monitor
2x USB-A 3.2 Gen 1 port (5 Gbit/s) for fast data transfer - one port with additional charging function (1.5A) for mobile devices
1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
2x card reader (SD/MicroSD) - transfer speed of 104 MBps
1x USB-C Power Delivery (3.0) - connection for charging the notebook
Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
Stowable USB-C connection cable (10 cm) - Practical connection to the host PC
Supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
Supports HDCP 2.2, HDCP 1.4
Supports HDR (High Dynamic Range)

More product information

Distribution Partner Overview

Description

Your most efficient solution for mobile productivity. With an HDMI port for an external monitor, two fast USB-A 3.2 Gen 1 ports (5 Gbit/s) - one with charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speed, it offers comprehensive connectivity. It allows you to charge your notebook via the USB-C Power Delivery port and is versatile with the stowable USB-C host cable. The docking station supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode. HDCP 2.2, 1.4 and HDR are also supported for an optimal multimedia experience.

Technical details

Connections:
1x USB-C (3.2 Gen 1) input - Host PC connection
1x HDMI output - Max. Resolution: UHD 4K/60Hz
2x USB-A 3.2 Gen 1 connection - 5 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A), 1x 4.5W (5V/0.9A)
1x RJ 45 Gigabit Ethernet - 10/100/1000 Mbit/s bandwidth
2x card reader - 1x SD/1x MicroSD (up to 104 MBps)
1x USB-C Power Delivery - 100 watts max. (85W host, 15W dock)
Chipset information: RTS5411S, AX88179A, RTS5306, RTD2172L, RTS5459
Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)
Supports HDR (High Dynamic Range)
Supports HDCP 2.2, HDCP 1.4
Short-circuit, overcurrent and overvoltage protection
Product color: Grey / Black
Housing: aluminum / plastic
Weight: 75 g
Dimensions: L 11 x W 5 x H 11 cm
Operating temperature : 0°C - + 45°C
Cable length: 10 cm
Cable color: Black
Notes
Not all USB-C ports support all functions of the USB-C standard. Make sure that the USB-C port on your notebook supports DisplayPort Alternate Mode (DP-Alt Mode) and USB Power Delivery (PD)
To use the full range of functions, the notebook must support DP 1.4 Alt Mode
When both USB-A 3.2 Gen 1 ports are used simultaneously, there is a difference in charging performance due to the joint limitation of the ampere output to a total of 2A.
Compatibility exists with the following operating systems up to their current versions: From Windows 7, from macOS 12, from iPhone 15 (iOS) , from iPadOS 16, from Android 14, from ChromeOS 116.0.5845.120, from Linux 22.04 LTS
HDTV Resolution max.: 3840 x 2160 Pixel, 60Hz
LAN connector (RJ45): yes
USB-C Power Delivery: 100W
Card reader: yes
Number of display ports: 1
Number of network ports: 1
Number of USB A ports: 2
Number of USB-C ports: 1
Number of video ports: 1
Video connection ports: HDMI

Package content

1x USB-C Travel Docking Station, 7-Port
1x QIG

Downloads and Certificates

Certificate

ext. Link

Datasheet

QIG

Logistics

	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
Packaging Unit Carton	80	9,00	37,50	46,00	22,50	38.812,50
Packaging Unit Inside	1	0,11	0,00	0,00	0,00	0
Packaging Unit Single	1	0,11	17,80	9,80	2,00	348,88

Customs tariff number: 8471800000

Safety notes

Overloading can lead to overheating and damage to the appliance or the connected peripherals.
If necessary, use an external power supply to ensure stable performance.
If devices such as external hard disks or printers that require a high power consumption are connected, the device should be used with an external power supply. Otherwise, the device could be overloaded or functional problems could occur.
Do not expose the device to rain, moisture, vapors or liquids.
Do not insert any objects into the device.
Do not attempt to repair the unit or open the housing without authorization. You risk an electric shock!
Ensure adequate ventilation to prevent damage due to overheating.
Dust, moisture, vapors and strong cleaning agents or solvents can cause damage to the device.
Disconnect the appliance from the power supply and the connected devices before cleaning.
Clean the device with a dust-free cloth.
