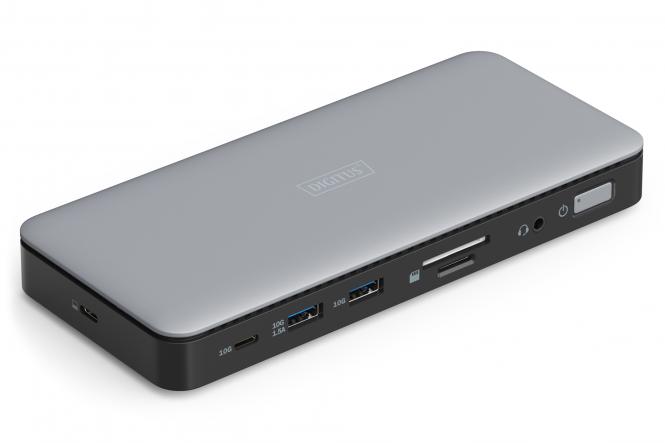

USB-C docking station, 11-port

DIGITUS USB-C docking station, 11-port

Product number: DA-70917
EAN: 4016032497769

USB-C Docking Station, 11-Port, 2x HDMI, 1x DP 2x USB-A, 1x USB-C, 1x RJ45, 1x DC, 1x Audio

Our docking station offers an ideal solution for office applications - expand your notebook connections and benefit from the triple monitor function, fast data transfer and a wide range of connection options

  • 2x HDMI port + 1x DP port (4K/60Hz) - Extend your workstation to up to 3 external monitors
  • Supports dual monitor (2x 4K/60Hz) & triple monitor (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (expand screen) - Windows, ChromeOS, Linux
  • Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST mode (screen mirroring) - All common operating systems
  • 2x USB-A 3.2 Gen 2 (10 Gbit/s) connection for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices
  • 1x USB-C 3.2 Gen 2 (10 Gbit/s) port for ultra-fast data transfer and with additional charging function (1.5A) for mobile devices
  • 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
  • 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
  • 1x DC-Jack - connection for charging the notebook
  • 1x 3.5 mm audio jack
  • Reversible USB-C 3.2 Gen 2 connection cable (100 cm) - Flexible connection to the host PC

More product information

Distribution Partner Overview
Print view ›
‹
›

Description

Expand your workplace with our USB-C docking station. Expand your screen with three external monitors thanks to the 2x HDMI ports and 1x DP port. The docking station supports both dual monitor mode (2x 4K/60Hz) and triple monitor mode (3x 4K/60Hz) in SST mode (screen mirroring) and (1x 4K/60Hz + 2x 4K/30Hz) MST mode (screen extension). Use the 2x USB-A 3.2 Gen 2 ports (10 Gbit/s) for ultra-fast data transfers, with one port also offering a 1.5A charging function for mobile devices. The USB-C 3.2 Gen 2 port (10 Gbit/s) provides extended connectivity, while the Gigabit Ethernet port (RJ45) enables a stable network connection. Two card readers (SD/MicroSD) offer a transfer speed of 104 MBps. The DC jack charges your notebook using a powerful power supply unit, and the 3.5mm audio jack rounds off the features. A reversible 100 cm USB-C connection cable ensures a flexible connection to the host. The docking station also supports DP 1.4 Alt Mode and HDR.

Technical details

  • Connections
  • 1x USB-C (3.2 Gen 2) input - Host PC connection
  • 2x HDMI + 1x DP output - Max. Resolution: UHD 4K/60Hz
  • 2x USB-A 3.2 Gen 2 connection - 10 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A), 1x 4.5W (5V/0.9A)
  • 1x USB-C 3.2 Gen 2 connection - 10 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A)
  • 1x RJ 45 Gigabit Ethernet connection - 10/100/1000 Mbit/s bandwidth
  • 2x Card reader - 1x SD/1x MicroSD (up to 104 MBps)
  • 1x DC-Jack - 150 watts max. (100W host, 50W dock)
  • 1x 3.5 mm audio jack
  • Anti-theft protection - 1x Standard + 1x Nano
  • Chipset information: VL171, VL103R-Q4, RTL8153B, GL3224, VMM5310, VL822T, VL817-Q7S, VL162, KT0200
  • Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)
  • Supports HDCP 2.2, HDCP 1.4
  • Supports HDR (High Dynamic Range)
  • Short-circuit, overcurrent and overvoltage protection
  • Product color: Grey / Black
  • Housing: aluminum / plastic
  • Weight: 282 g
  • Dimensions: L 18 x W 8 x H 2.3 cm
  • Operating temperature : 0°C - + 45°C
  • Cable length: 100 cm
  • Cable color: Black
  • Power switch with LED display
  • Notes:
  • Not all USB-C ports support all functions of the USB-C standard. Make sure that the USB-C port on your notebook supports DisplayPort Alternate Mode (DP-Alt Mode) and USB Power Delivery (PD)
  • Supports dual monitor (2x 4K/60Hz) & triple monitor (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (Multi Stream Transport / extend screen) - Windows, ChromeOS, Linux
  • Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST mode (single stream transport / screen mirroring) - Windows, MacOS, iOS, iPadOS, Android, ChromeOS, Linux
  • The video output capability (actual resolution) depends on the graphics card of your notebook, the connected monitor and the DP mode
  • To use the full range of functions, the notebook must support DP 1.4 Alt Mode
  • The docking station is not operational without a connected power supply (DC jack)
  • Compatibility exists with the following operating systems up to their current versions: From Windows 7, from macOS 12, from iPhone 15 (iOS) , from iPadOS 16, from Android 14, from ChromeOS 116.0.5845.120, from Linux 22.04 LTS
  • HDTV Resolution max.: 3840 x 2160 Pixel, 60Hz
  • LAN connector (RJ45): yes
  • Card reader: yes
  • Number of audio ports: 1
  • Number of display ports: 3
  • Number of network ports: 1
  • Number of USB A ports: 2
  • Number of USB-C ports: 1
  • Number of video ports: 3
  • Video connection ports: HDMI, HDMI, DisplayPort

Package content

  • 1x USB-C docking station, 11-port
  • 1x QIG
  • 1x USB-C cable (100 cm)
  • 1x Power supply unit (21V/7,1A ; 120 cm)
  • 1x Power Cord (100 cm)

Downloads and Certificates

Certificate

Datasheet

QIG

Logistics

  Number
(pcs) 		Weight
(kg) 		Depth
(cm) 		Width
(cm) 		Height
(cm) 		cm³
Packaging Unit Carton 10 7,50 31,00 31,00 23,00 22.103,00
Packaging Unit Inside 1 0,75 0,00 0,00 0,00 0
Packaging Unit Single 1 0,75 22,00 15,00 6,00 1.980,00
Customs tariff number: 8471800000
