DIGITUS SOHO PRO network set, 254 mm (10") - 12U, 315 x 300 mm (W x D)

Product number: DN-49104-SET

EAN: 4016032499442

10" network bundle, 12U cabinet and equipment, gr SOHO PRO version

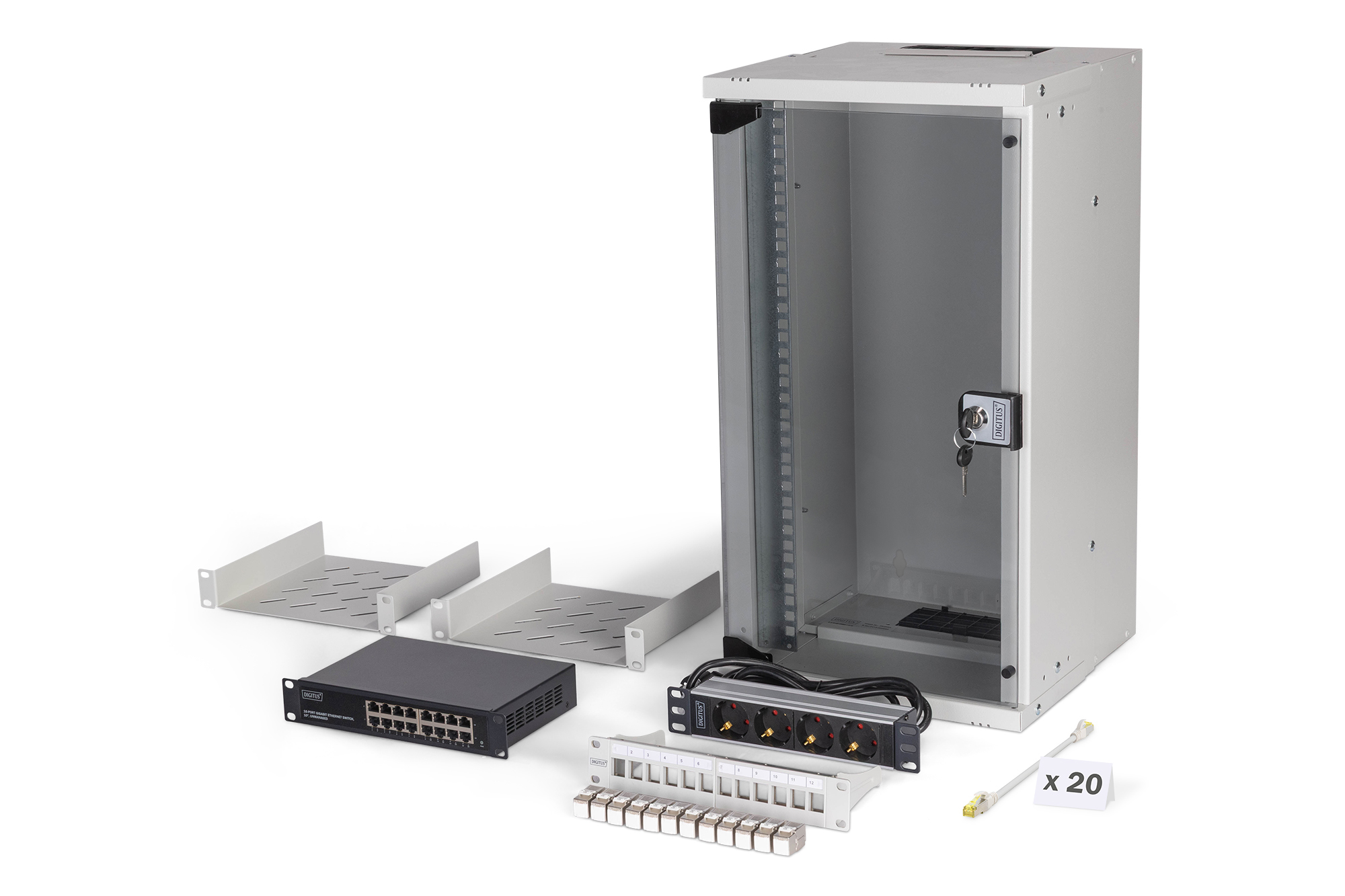

Complete set for setting up a compact 254 mm (10") network, incl. cabinet, shelf, socket strip, switch, patch panel, keystone modules, patch cables.

Including wall-mounted enclosure SOHO PRO, 12U, 595 x 315 x 300 mm (DN-49104)
Including 2 x shelf, 1U (DN-10-TRAY-2)
Including socket strip, 1U, 4 x earthing contact (DN-95418)
Including Gigabit Ethernet switch, 16-port (DN-80115)
Including modular patch panel, 12-port (DN-91419)
Including 12 x Keystone module, CAT 6A, shielded (DN-93615)
Including 20 x patch cable, CAT 6A, S/FTP, 0.25 m

Distribution Partner Overview

More product information

Description

Whether in the home, office or in sub-distribution boards with limited space: With the compact 254 mm (10") solutions from the SOHO PRO series, you can install your network wherever you want. Installation takes just a few steps and is child's play thanks to the enclosed step-by-step instructions. Available in three versions of height units (6U, 9U, 12U), these network sets include perfectly matched DIGITUS components to ensure quick and easy IT cabling ready for use. The network cabinet and the respective accessories (e.g. switch, patch panel, socket strip, shelf, cable management panel, patch cable, etc.) are supplied in a compact cardboard box.

Technical details

Wall housing dimensions (H x W x D): 595 x 315 x 300 mm
Multiple socket outlet with 4 socket outlets with earthing contact 250VAC 50/60Hz / 16A / 4000W
Socket strip with 2 m supply cable H05VV-F 35 1.5 mm² with earthing contact plug
Switch complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x network standards
Keystone module: Category 6A 10GBase-T, 500 MHz, suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt), GHMT certified
Patch cable: CAT 6A S-FTP, Cu, LSZH, AWG 26/7, length 0.25 m, color grey

Attributes

Cabinet type: Wall mounting cabinet
Color: light grey, RAL 7035
Depth: 300 mm
Front door: Glass door, single opening
Load capacity: 30 kg
Side panels: Both sides
Units: 12
Width: 315 mm
IP protection class: IP20
Mounted: no

Package content

1 x wall housing (incl. 2 x keys)
2 x shelf
1 x socket strip
1 x switch
1 x patch panel
12 x Keystone module
20 x patch cable

Downloads and Certificates

Datasheet

Datasheet EN

Logistics

	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
Packaging Unit Carton	1	0,00	0,00	0,00	0,00	0
Packaging Unit Inside	1	0,00	0,00	0,00	0,00	0
Packaging Unit Single	1	0,00	0,00	0,00	0,00	0

Customs tariff number: 9403208000

Safety notes

Ensure adequate ventilation to prevent the installed devices from overheating.
Network cabinets should not be overfilled and the ventilation openings must not be blocked.
Cables should be neatly routed and organized in cable ducts or trays.
Use surge protection devices to protect sensitive devices from power surges or lightning strikes.
Avoid moisture or wetness while observing the respective IP protection class.
Ensure that the cabinet and the devices used are properly earthed.
In regions with frequent thunderstorm activity, professional lightning protection should be integrated into the power supply.
To avoid uneven loading, always mount the heaviest units at the bottom of the cabinet.
Disconnect the installed devices from the power supply during maintenance or installation work.
